Warp ApoF Tutorial¶

Note

This page is a work in progress. The screenshots were taken from a project where both parts of the workflow had already been run, so every job appears as finished.

This tutorial walks through the full Warp-based apoferritin (ApoF) processing pipeline in EMhub-Tomo, from importing raw tilt-series data all the way to a multi-particle (M) refinement, mixing Warp, PyTOM, and Relion.

The pipeline is split into two workflows of 11 jobs each, which you can run in two sittings: apof-warp-tutorial-part1 (preprocessing, particle picking, and the first Relion refinement) and apof-warp-tutorial-part2 (the M refinement stage). Load them into the same project, one after the other, since part 2 continues from the M population created at the end of part 1.

Before You Start¶

EMhub-Tomo must be installed and configured – see Welcome to EMhub-Tomo! for the installation steps.
The launchers for WARP, RELION, PYTOM, and ARETOMO2 must be configured and working for your site (AreTomo2 is used internally by the Warp tilt-series alignment step). See Supported Programs for how to set these up, for example against an SBGrid installation.
The required test data, WarpApofTutorial (5 apoferritin tilt series from EMPIAR-10491), must be downloaded – see Test Data for how to get it and its expected layout.

Creating a Project¶

Open the Tomography section in the left sidebar to see the Tomo Processing page. It lists your projects (grouped by date) and projects shared with you. Click Create New Project to open the project form.

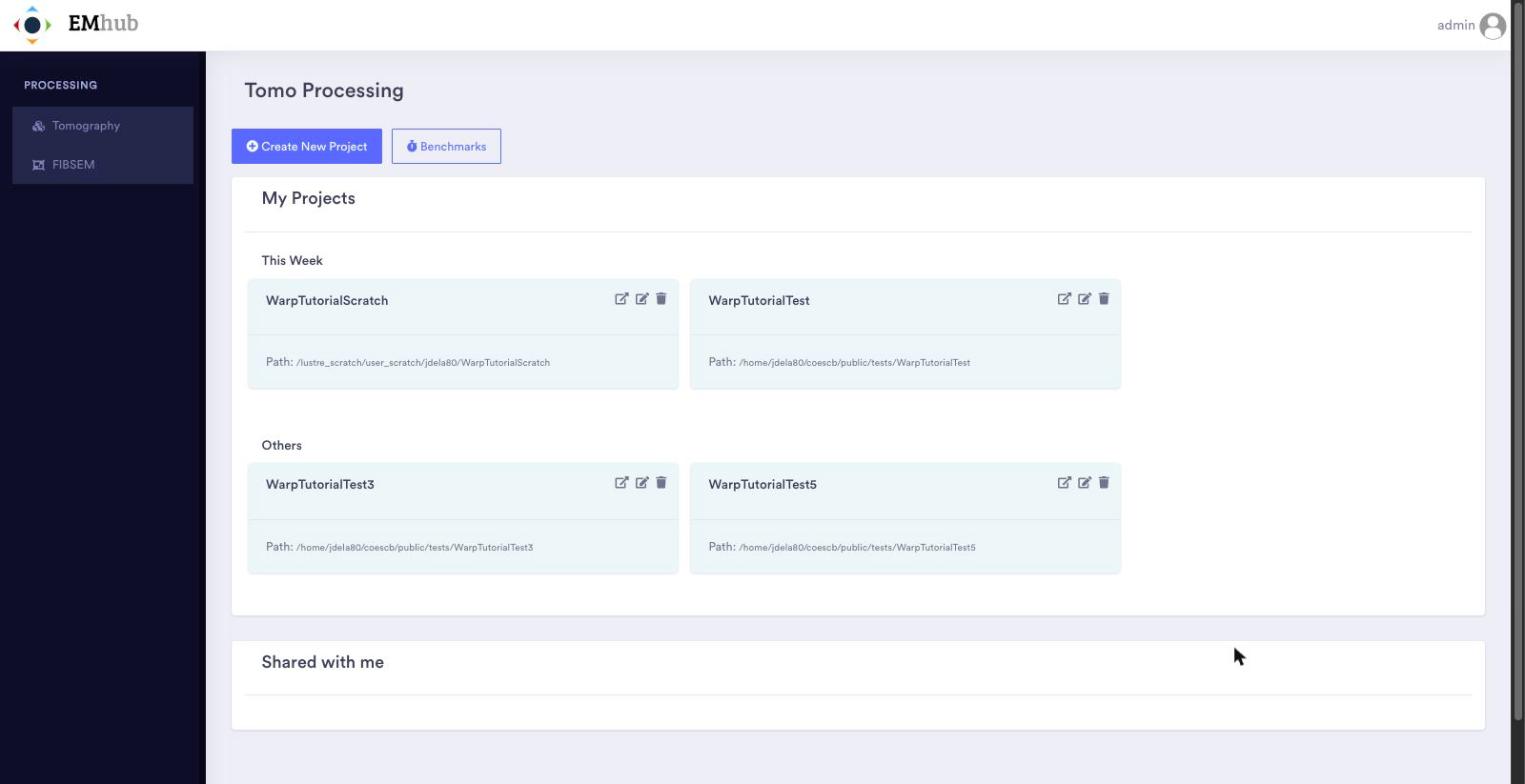

The Tomo Processing page with the list of existing projects.¶

In the form, enter a Title and an optional Description, then set the PROCESSING path. This is the folder where the project will be created: the last folder in the path must not exist yet, but its parent must exist and be writable. The DATA path is optional. If you set it, a data link to the raw data folder is created inside the project so that all inputs can be given relative to the project root. The Sharing tab lets you share the project with other users. Click Create to create the project.

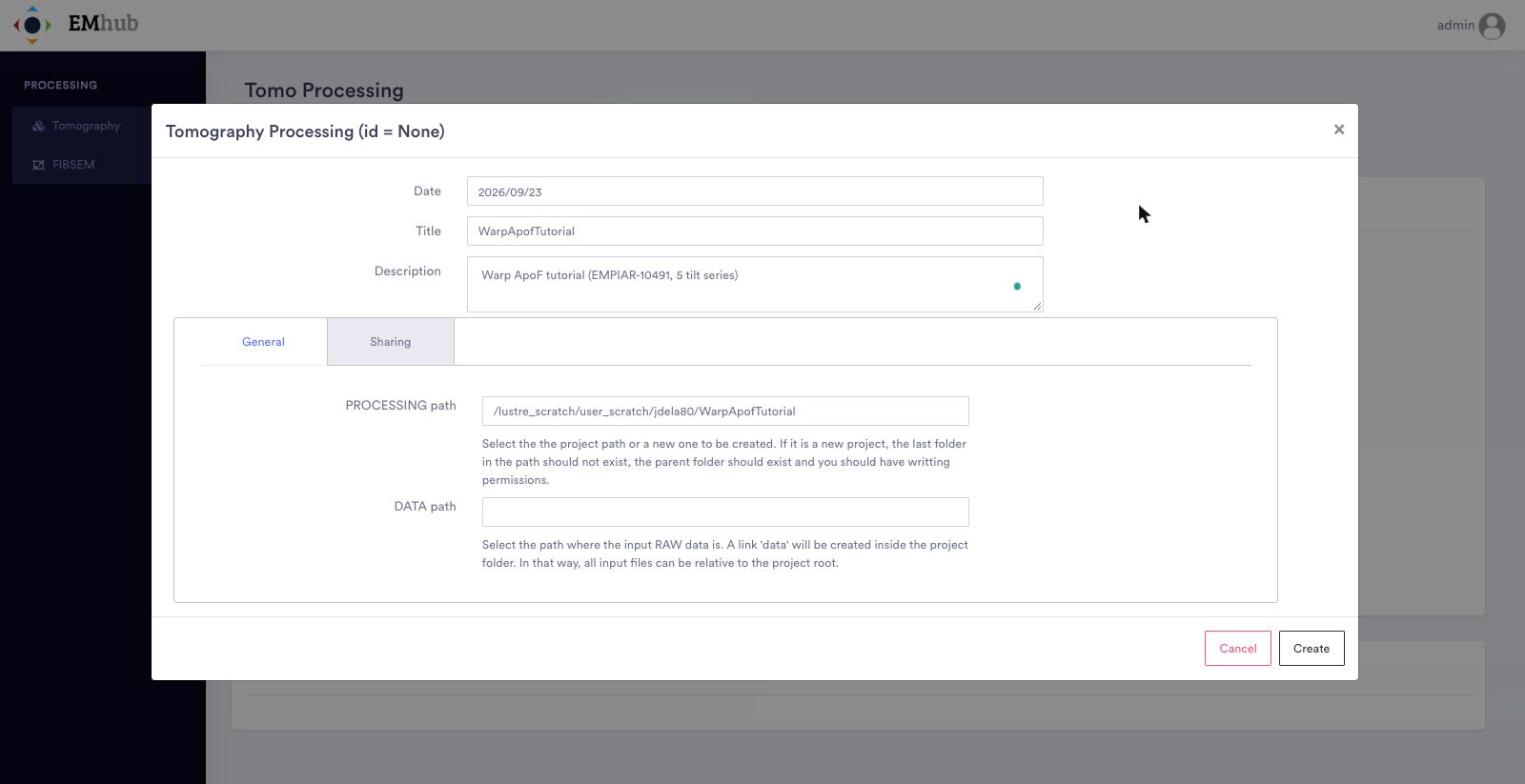

Creating a new project for the tutorial.¶

Opening a Project¶

Back on the project list, click the open icon (the first of the three icons on the project card) to open the project. The second icon edits the project settings with the same form used to create it, and the third one deletes the project.

A project can be shown in several View modes (top right): the workflow graph, a grid of job cards, and a table with every job, its protocol, state, elapsed time and dependent jobs. The screenshot below shows the grid view of a project where the full tutorial has already been run.

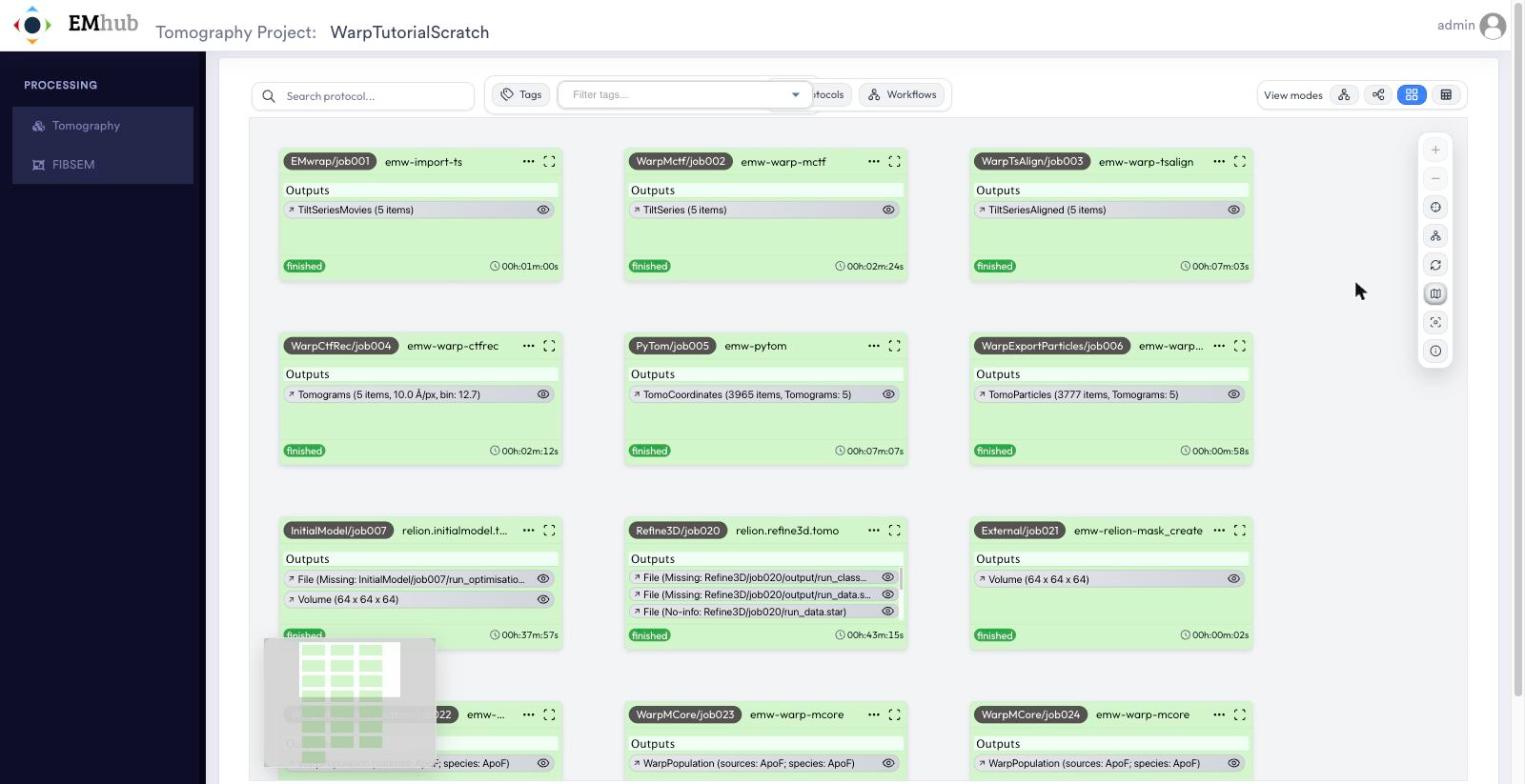

A project opened in the grid view mode.¶

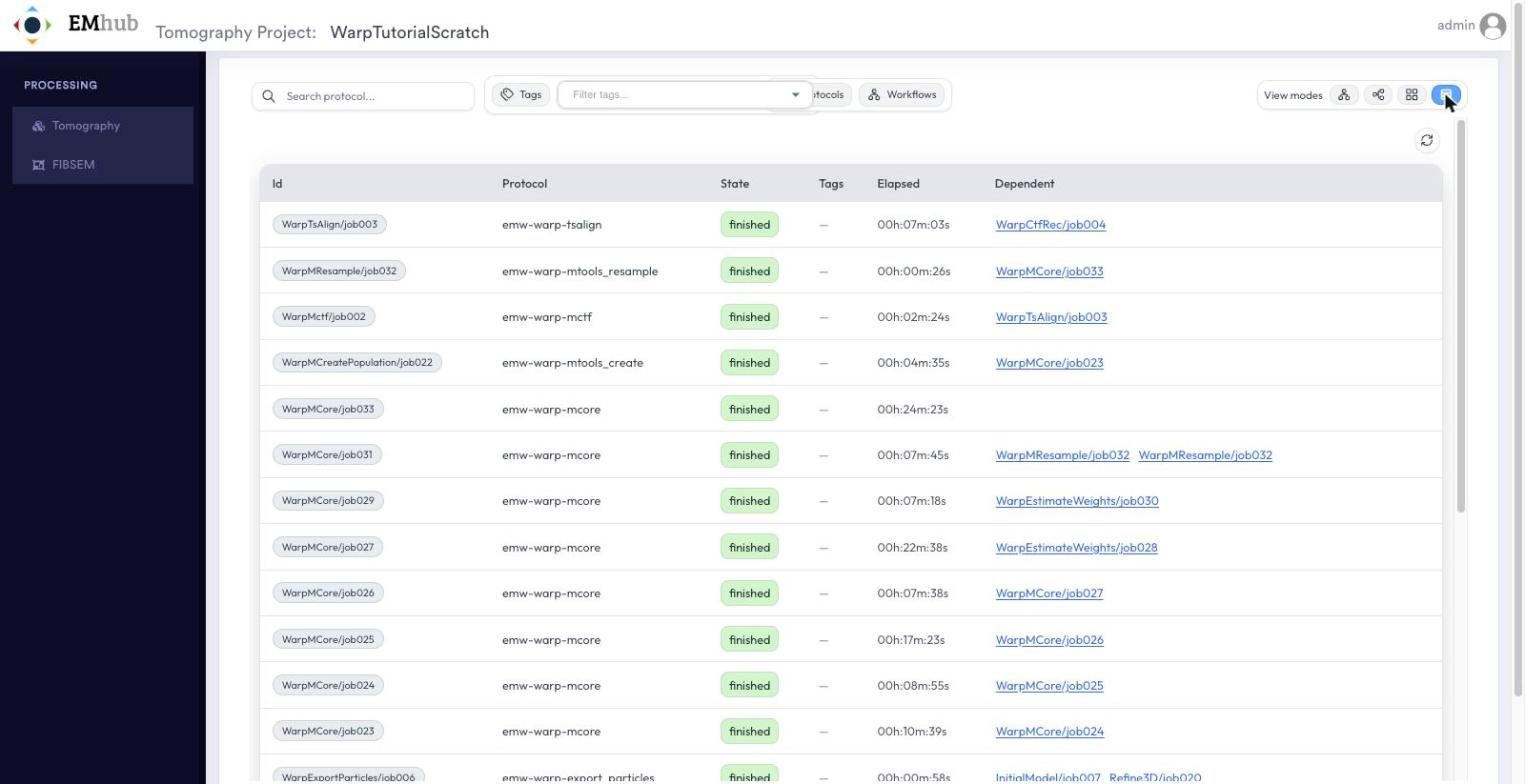

The same project in the table view mode.¶

Loading the Workflow¶

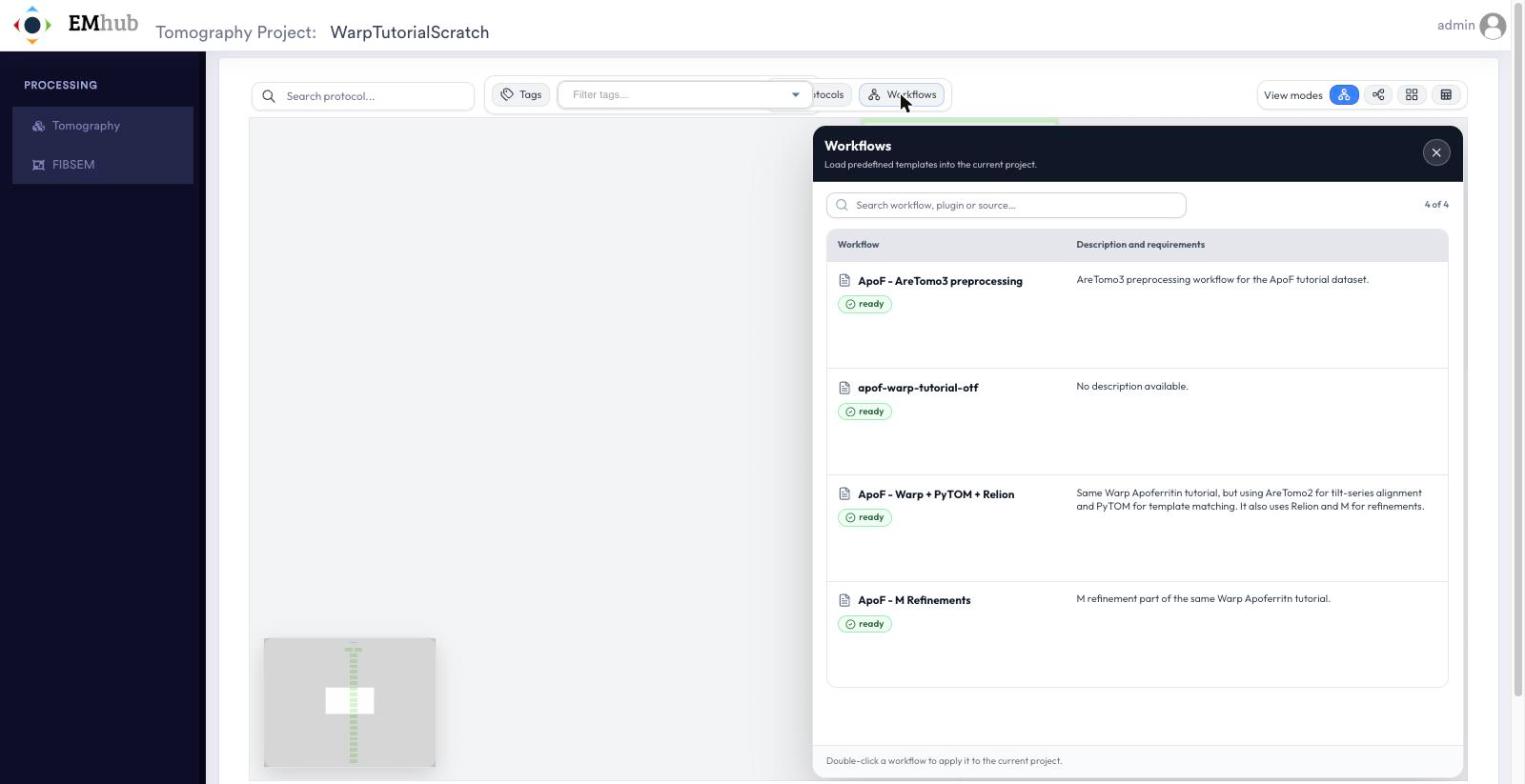

Once the test data is in place, open the project and click Workflows in the toolbar. The Workflows panel lists the predefined templates that can be loaded into the current project. Double-click ApoF - Warp + PyTOM + Relion (apof-warp-tutorial-part1) to add its 11 jobs to the project, already linked together and pre-filled with the parameters needed for this dataset. You can then launch them in order. When they are done, load ApoF - M Refinements (apof-warp-tutorial-part2) into the same project for the remaining 11 jobs.

Warning

Every time a workflow is applied, a new copy of all its jobs is added to the project. Load each part only once.

Job Forms¶

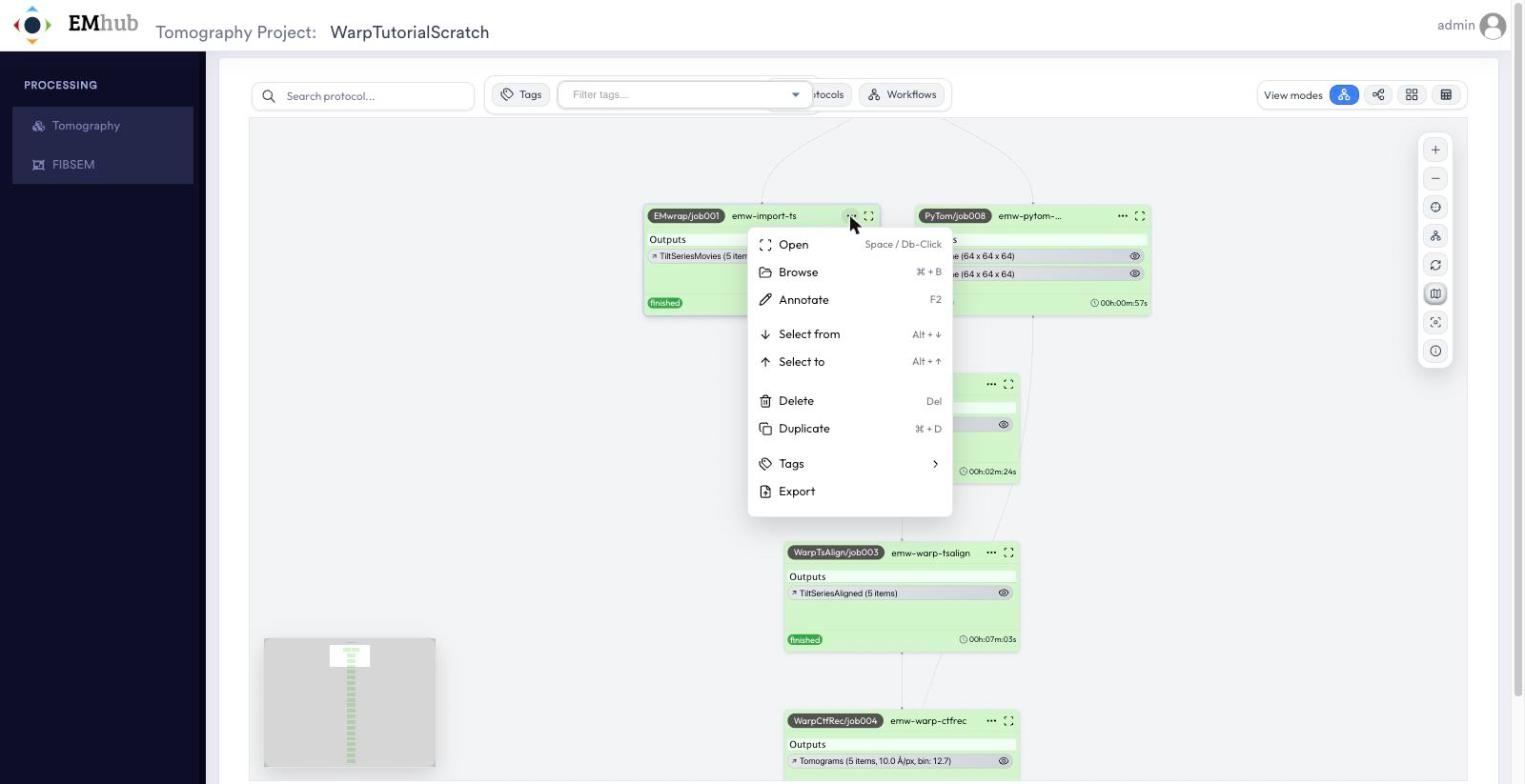

Each job box in the graph shows its outputs, state and elapsed time. Click the ... button to open the job menu. Choose Open (or double-click the job) to see its form. From the same menu you can browse the job folder, annotate, tag, duplicate, export or delete the job, and select a range of jobs (Select from / Select to).

The job form has an Inputs and Parameters tab, where parameters are grouped into sub-tabs, plus Outputs, Logs and Metadata tabs. The workflow pre-fills the parameters. For example, the EMwrap Import TS job points to the frames, mdoc files and gain reference under data/ and sets the acquisition parameters for EMPIAR-10491. Use Save to keep changes and Launch to run the job.

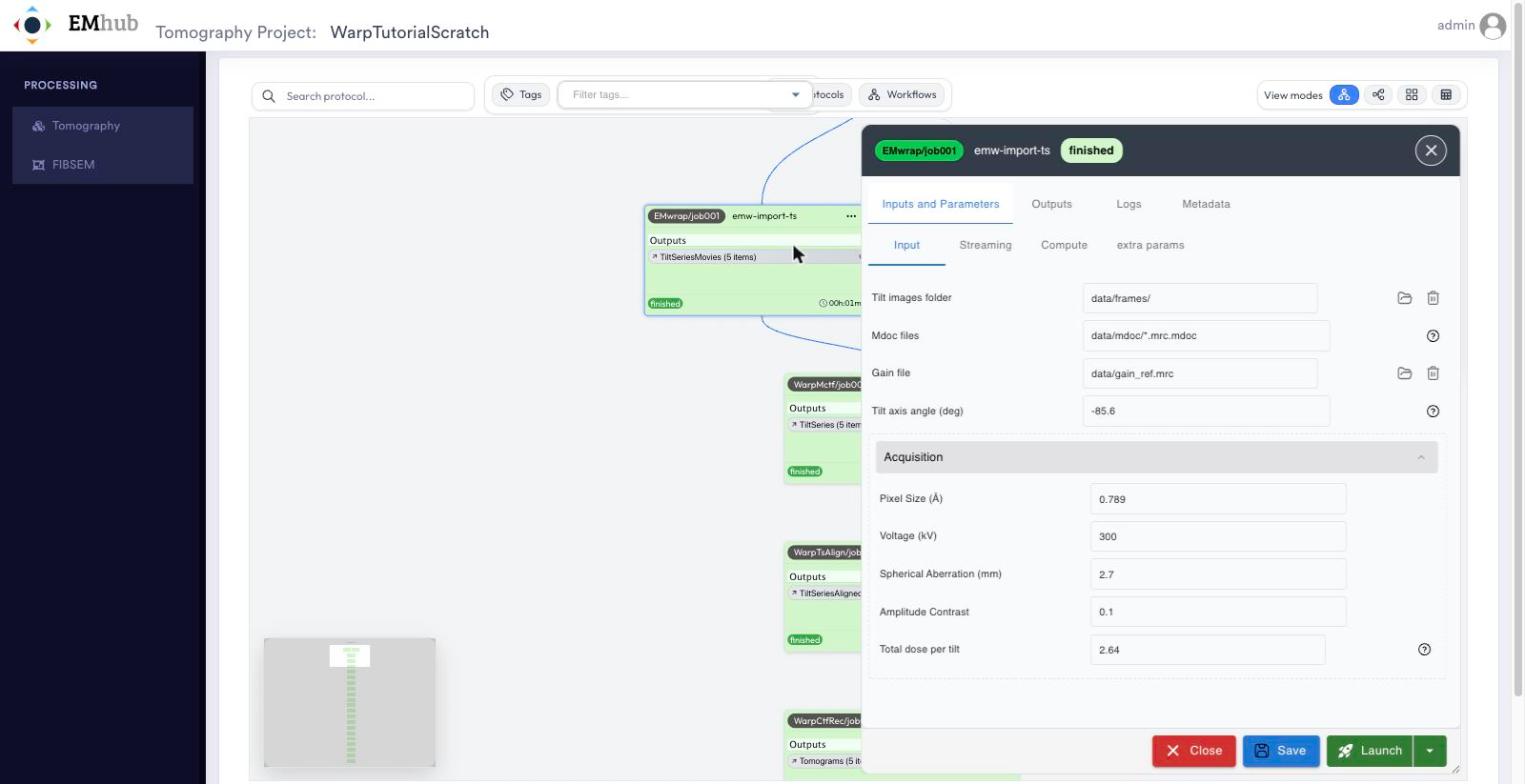

Form of the EMwrap Import TS job, with the acquisition parameters of the dataset.¶

The Compute sub-tab selects the queue that the job is submitted to (see Cluster Queues).

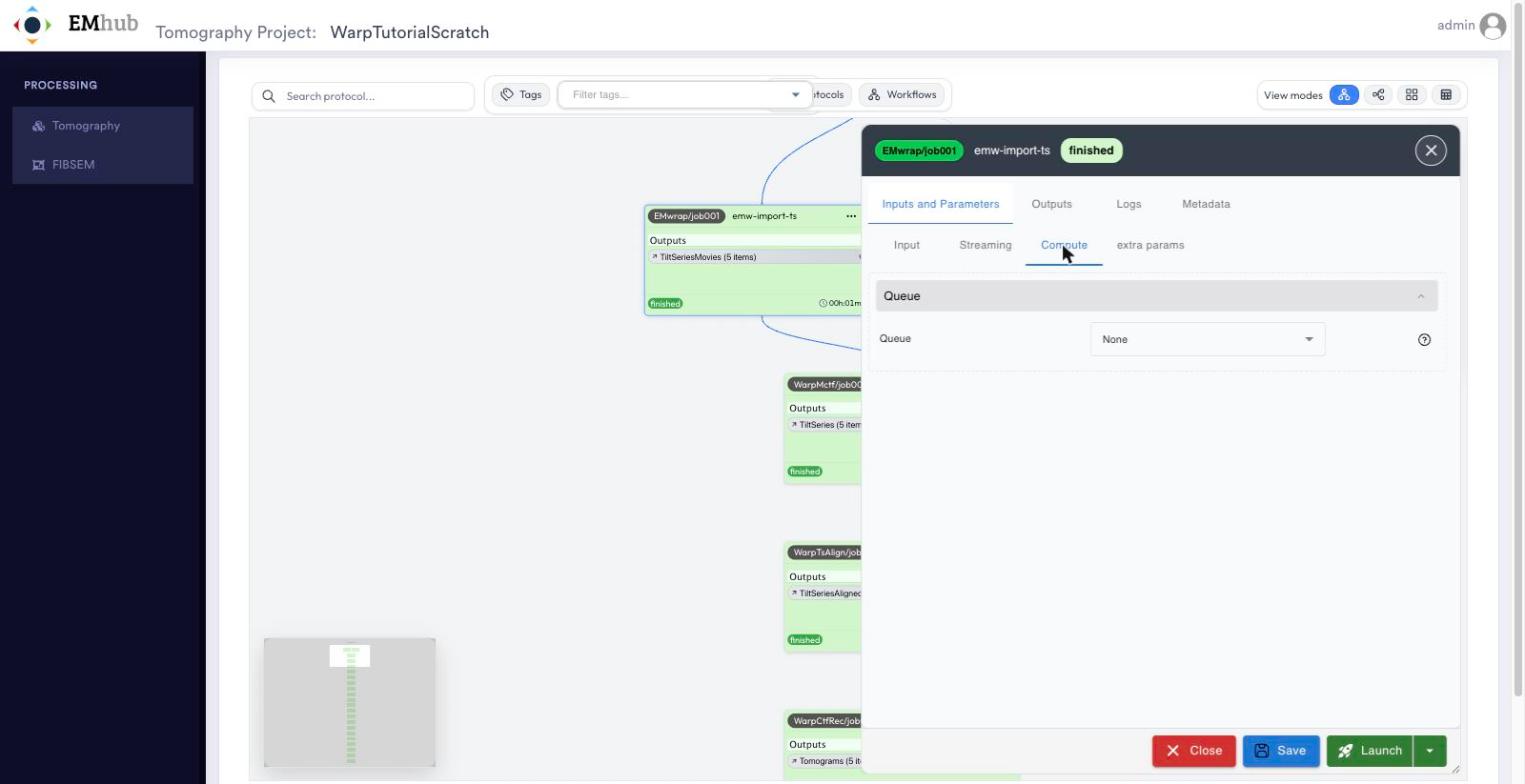

The Compute sub-tab, where the execution queue is chosen.¶

Workflow Steps¶

1. Preprocessing¶

EMwrap Import TS (emw-import-ts) – import the raw frames, mdocs, and gain reference from testdata/WarpApofTutorial as tilt series, using the dataset’s acquisition parameters.
Warp Motion and CTF (emw-warp-mctf) – per-tilt motion correction and CTF estimation with Warp.
Warp Tilt Series Alignment (emw-warp-tsalign) – tilt-series alignment, using AreTomo2 by default.
Warp CTF and Reconstruction (emw-warp-ctfrec) – 3D CTF correction and tomogram reconstruction.

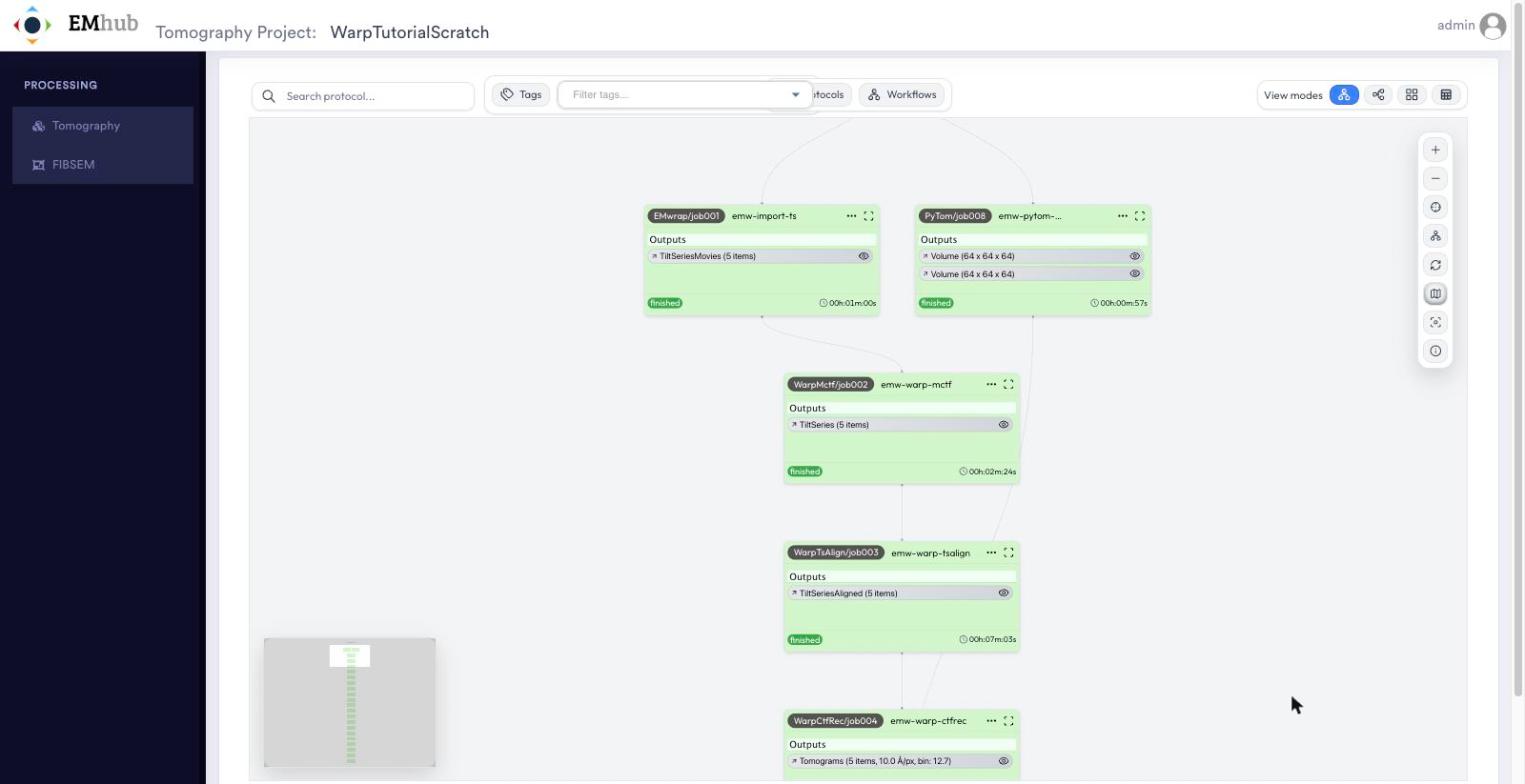

The preprocessing jobs in the workflow graph. The PyTom Create Template job (job008) does not depend on them and runs in parallel.¶

Click the eye icon of an output to inspect it. Outputs built on tilt series (tomograms, coordinates) are listed in a table, one row per tilt series. The tilt angles, motion and defocus actions at the end of each row plot the per-tilt values in the Viewer panel.

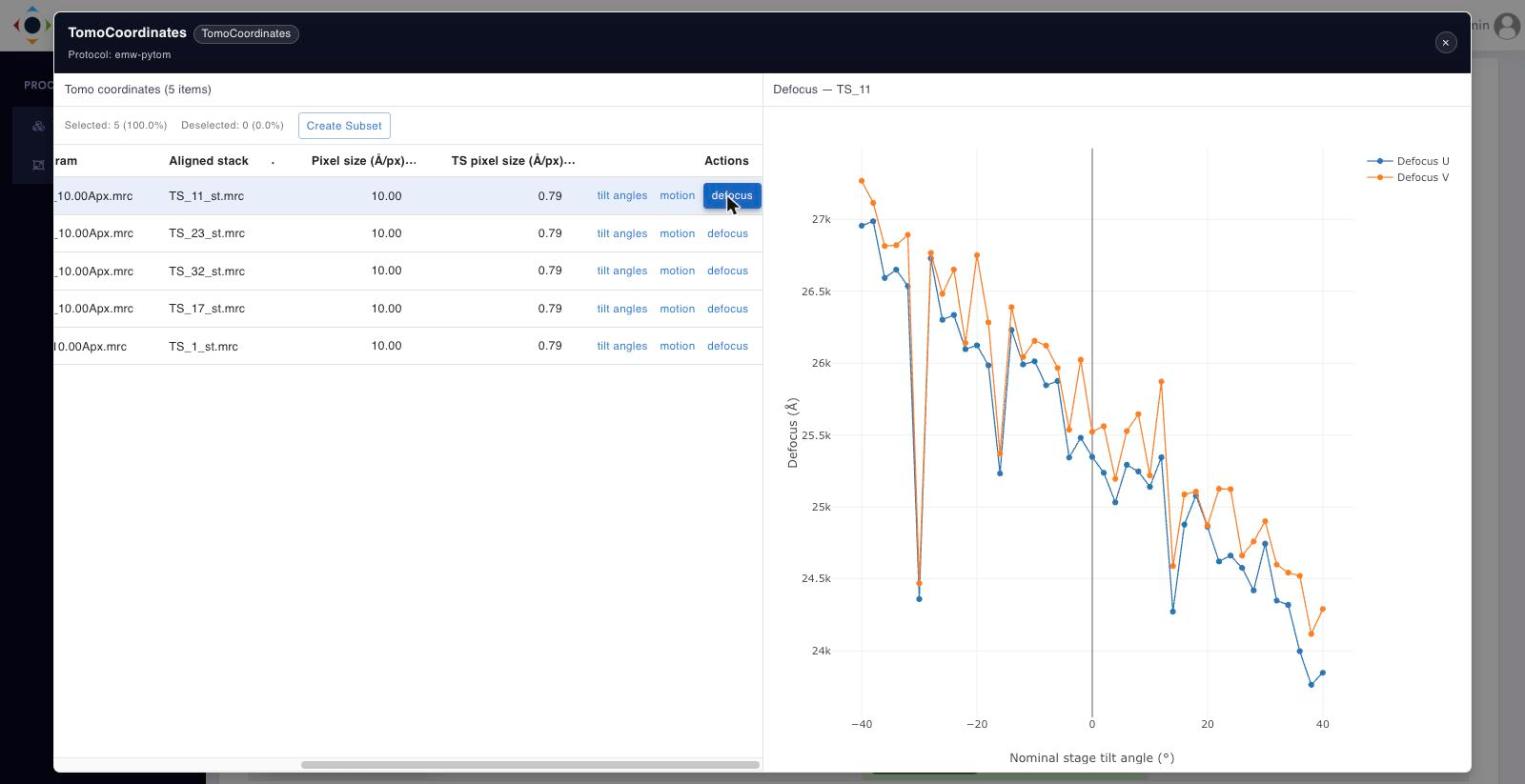

Per-tilt defocus estimated by Warp for tilt series TS_11.¶

2. Particle Picking¶

PyTom Create Template (emw-pytom-create_template) – build the template and mask used for template matching from the reference map data/emd_15854.map. This job has no dependencies, so it can be launched at any point before the template matching step.
PyTom Template Matching (emw-pytom) – 3D template matching to locate apoferritin particles in the reconstructed tomograms.
Warp Export Particles (emw-warp-export_particles) – export the picked particle coordinates/subtomograms from Warp for refinement in Relion.

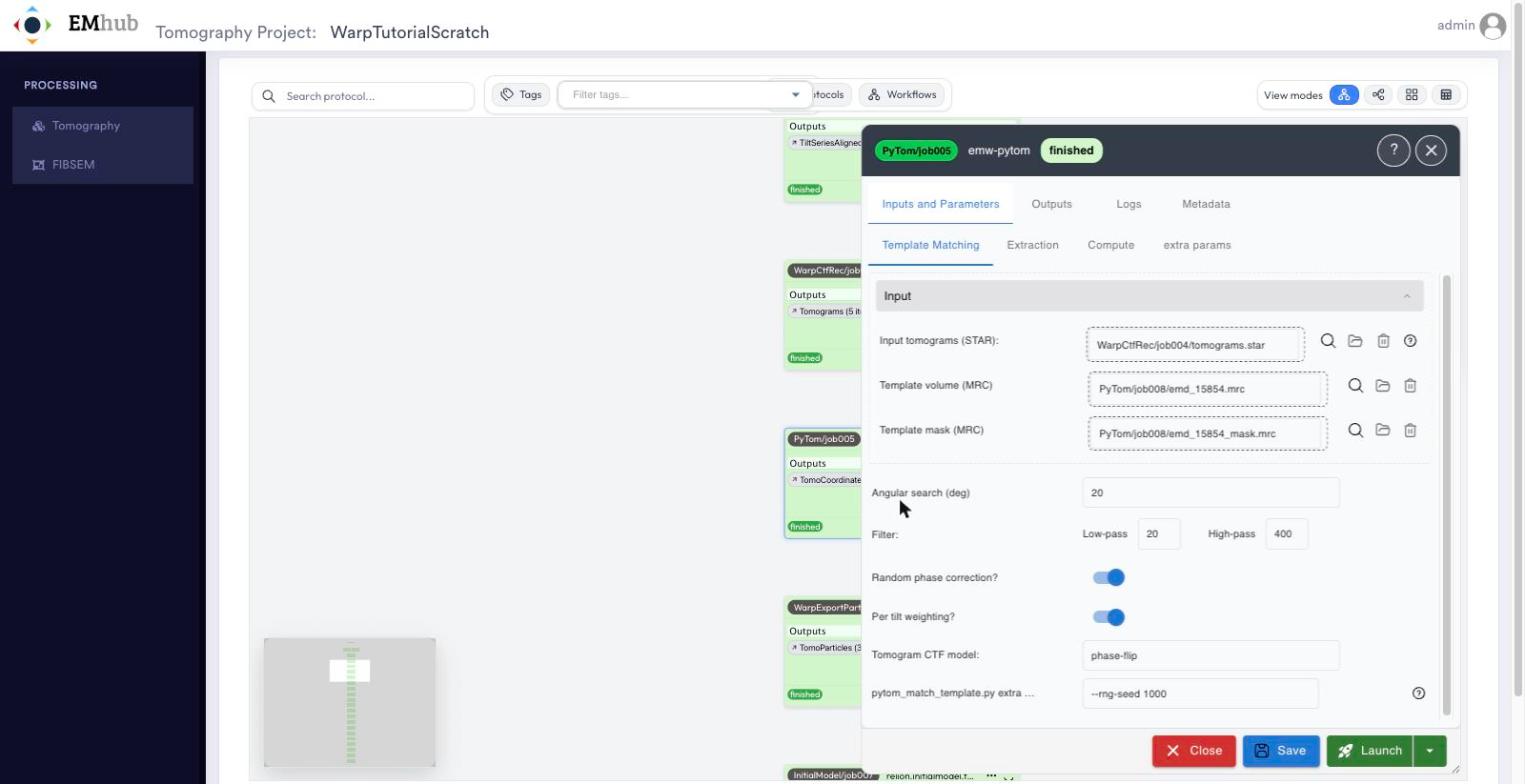

Form of the PyTom Template Matching job. Its inputs are linked to the tomograms from WarpCtfRec/job004 and to the template and mask from PyTom/job008.¶

To check the picked particles, click the eye icon of the TomoCoordinates output of the PyTom job and then click the tomogram name of any row. The viewer shows orthogonal slices of the tomogram. Use the sliders to move through them, and turn the picked coordinates on or off with Show particles.

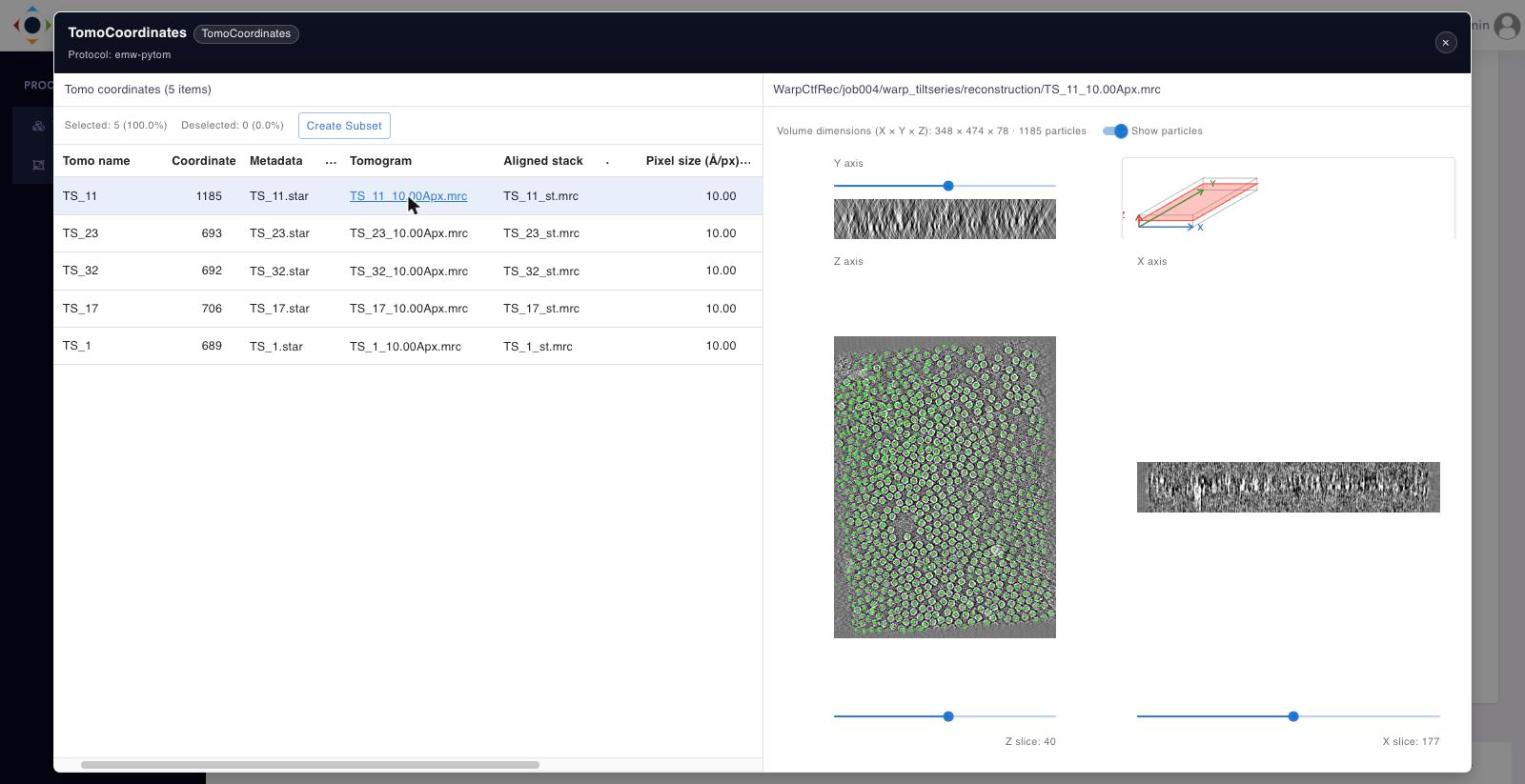

PyTOM template matching results: the 1185 particles picked in TS_11 shown on the tomogram slices.¶

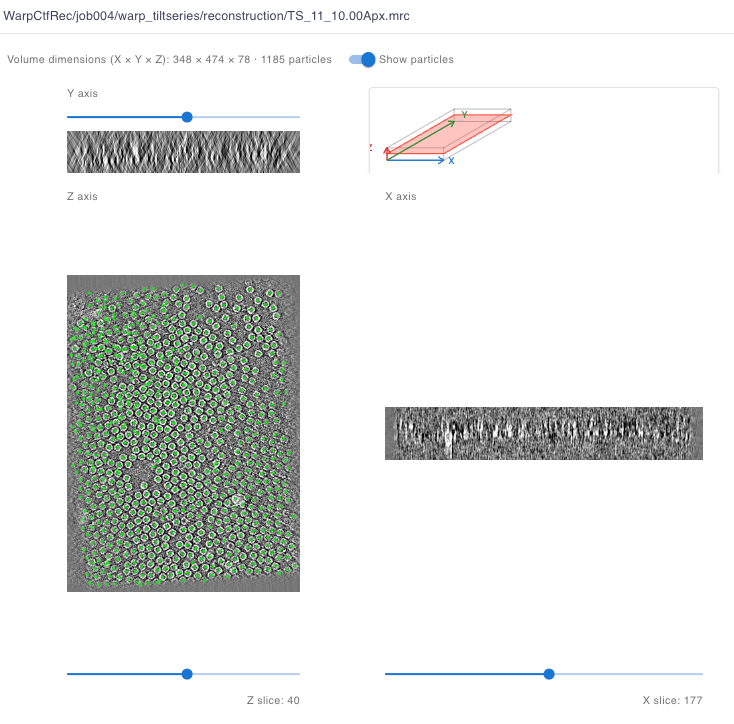

Close-up of the viewer: picked coordinates (green) on a Z slice of TS_11.¶

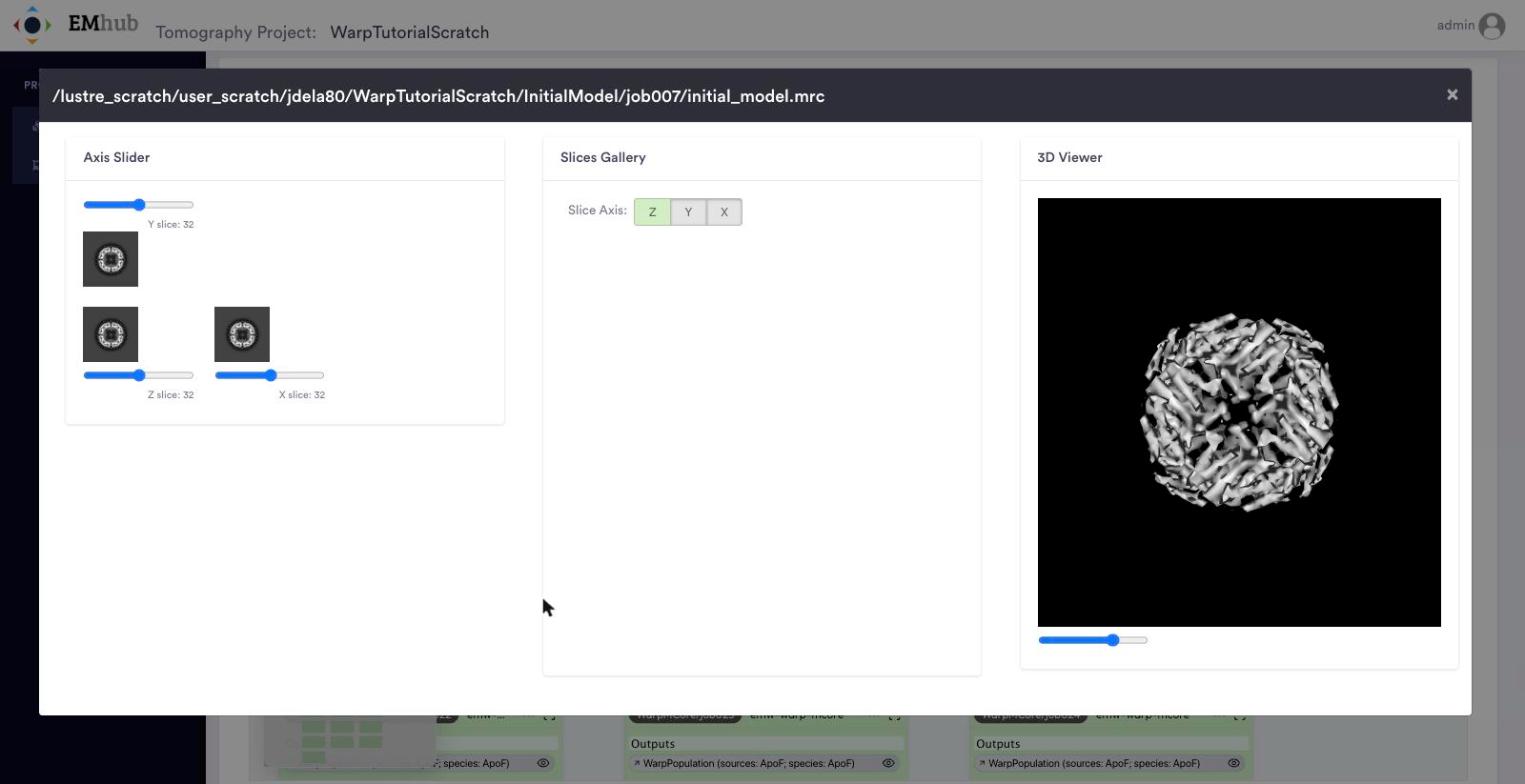

4. M (Multi-Particle) Refinement¶

The last job of part 1 sets up the M refinement, and the whole of part 2 runs it, alternating refinement iterations (Warp MCore Refine, emw-warp-mcore) with weight re-estimation (Warp Estimate Weights, emw-warp-estimate_weights), and a resampling step partway through:

Warp M Create Population (emw-warp-mtools_create) – create the M population from the Relion refinement and mask. This is the last job of apof-warp-tutorial-part1; the jobs below come from apof-warp-tutorial-part2.
Warp MCore Refine – run five times in a row to refine particle poses/warp fields.
Warp Estimate Weights – re-estimate per-particle/per-tilt weights.
Warp MCore Refine – another refinement round.
Warp Estimate Weights – weights re-estimated again.
Warp MCore Refine – another refinement round.
Warp M Resample (emw-warp-mtools_resample) – resample the M population (e.g. to a finer pixel size) for a final round.
Warp MCore Refine – the final refinement round, against the resampled population.

The eye icon of the WarpPopulation output of any M job opens the population viewer. It lists the files of the population (maps, half maps, masks, local resolution, etc.), displays the selected map in 3D, and plots the Fourier Shell Correlation curves computed by M.

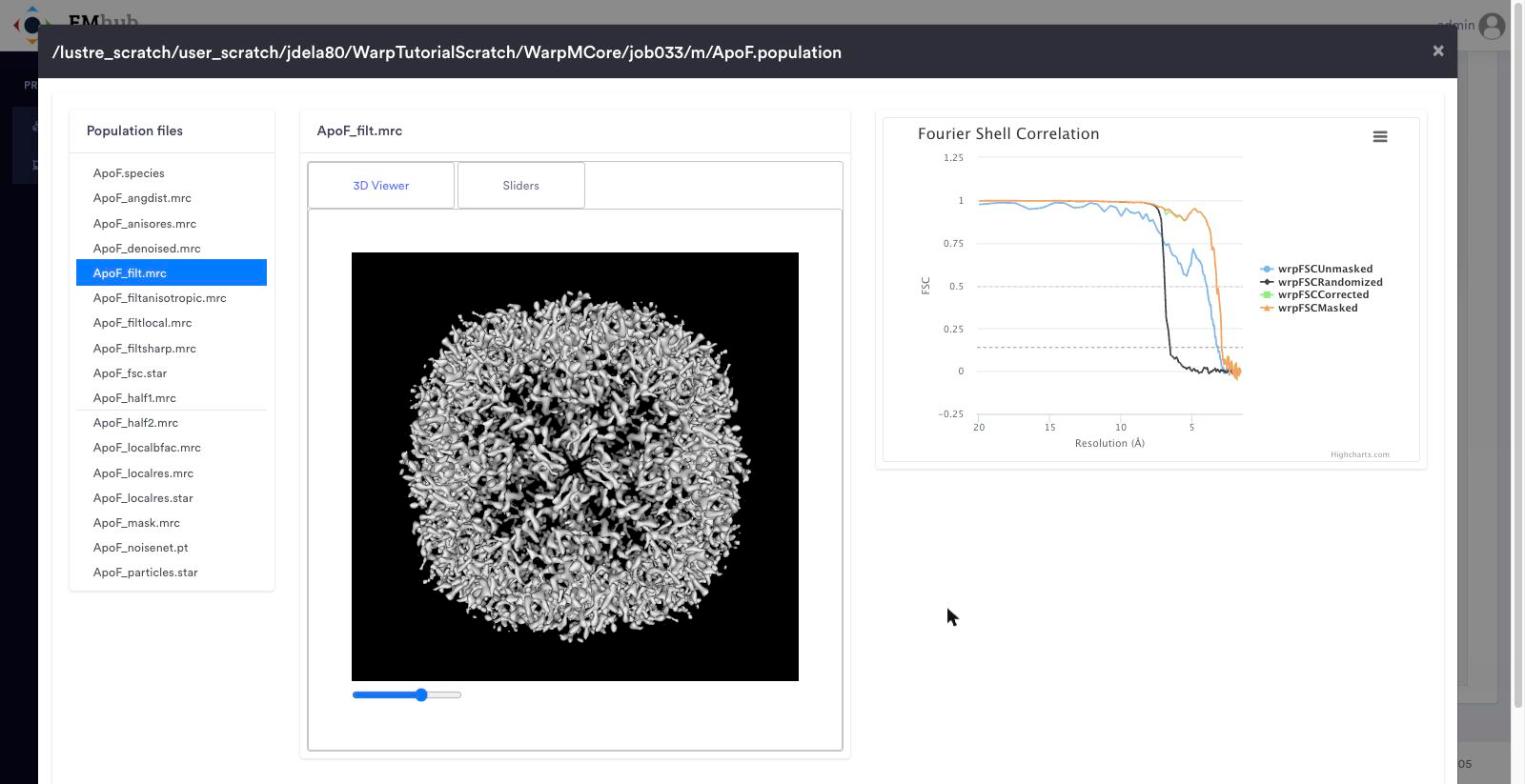

Final result after the last M refinement (WarpMCore/job033): the filtered ApoF map and the FSC curves.¶
